DS20T

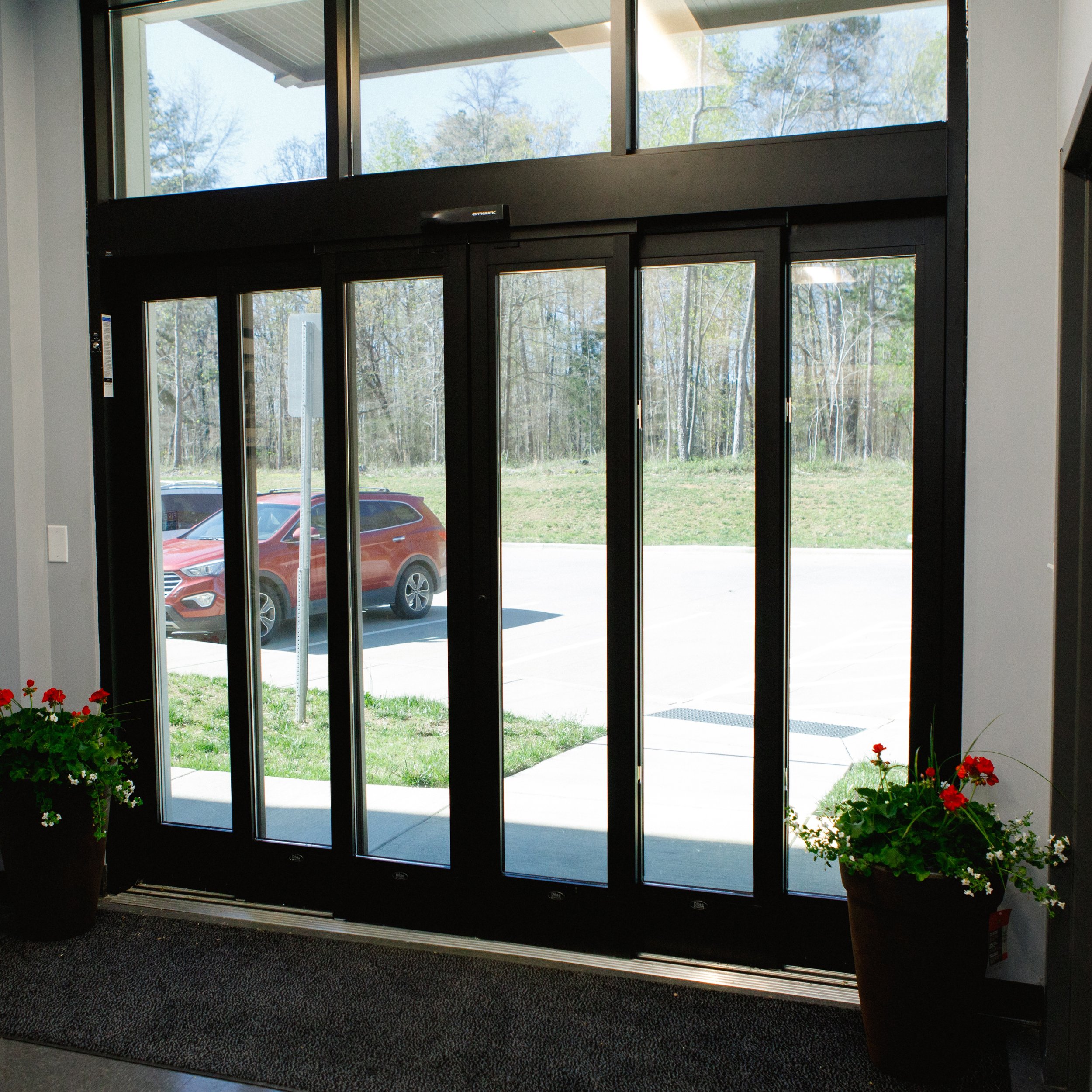

The DS20 Automatic Sliding Door is a complete package available in various configurations to meet any type of application. Offering high speed & smooth operation, the DS20 is reliable and safe with easy installation and user-friendly controls. Single slide, bi-part and telescopic doors are available in surface mount or overhead concealed configurations, while the All-Glass version provides added elegance to upscale architecture.
-
Meets ANSI A156.10 guidelines for power operated pedestrian doors
Certified UL/cUL
Microprocessor control
Automatic braking stroke adjustment
Electro-magnetic lock system available
Compatible with most activation devices: push button, remote control,motion sensors
User-friendly control functions
Plug & Play sensor connections
Bottom rails available in 4”, 7” and 10”
Electric solenoid locks (fail safe/fail secure)
Panic bars (recessed/surface mounted)
Dual channel hold open beams
Hydraulic Closing Systems
Sidelite Dampener
Transom packages
All-Glass
Custom finishes and cladding
Battery back-up for operation in the event of power failure
-
Motor: low-energy/high efficiency 75 watt
Input Power: 100v-240v AC / 50-60Hz / 2.5A
Standard colors: clear or dark bronze anodized
Opening/Closing Speed: adjustable
Open braking force & torque: adjustable
Control settings memory: up to 10 years
Failure detection & auto reset: yes
Control board self-diagnosis: yes
Carrier wheels: 4 wheels per panel
Operating Conditions: -4 to +122 Fahrenheit (-20 to +50 Celsius)
Header Size: Height 8" (includes 1" sensor cap); Depth 4 1/2"
Single Slide standard size: 7' to 9' wide/89.75" high
Bi-Part standard size: 10' to 16' wide/89.75" high
Glass Stops: 1/4", 5/8" and 1" available
Switch: 5-position rotary switch (key switch optional)
Adjustable end-stop: yes
Recommended Max Door Weight (standard): 225 lbs/panel (bi-part); 300 lbs/panel (single slide)
Recommended Max Door Weight (telescopic): 176 lbs/panel (with non-panic); 220 lbs/panel (with panic)
Certifications: ANSI/BHMA A156.10 and UL325
