5400 Series

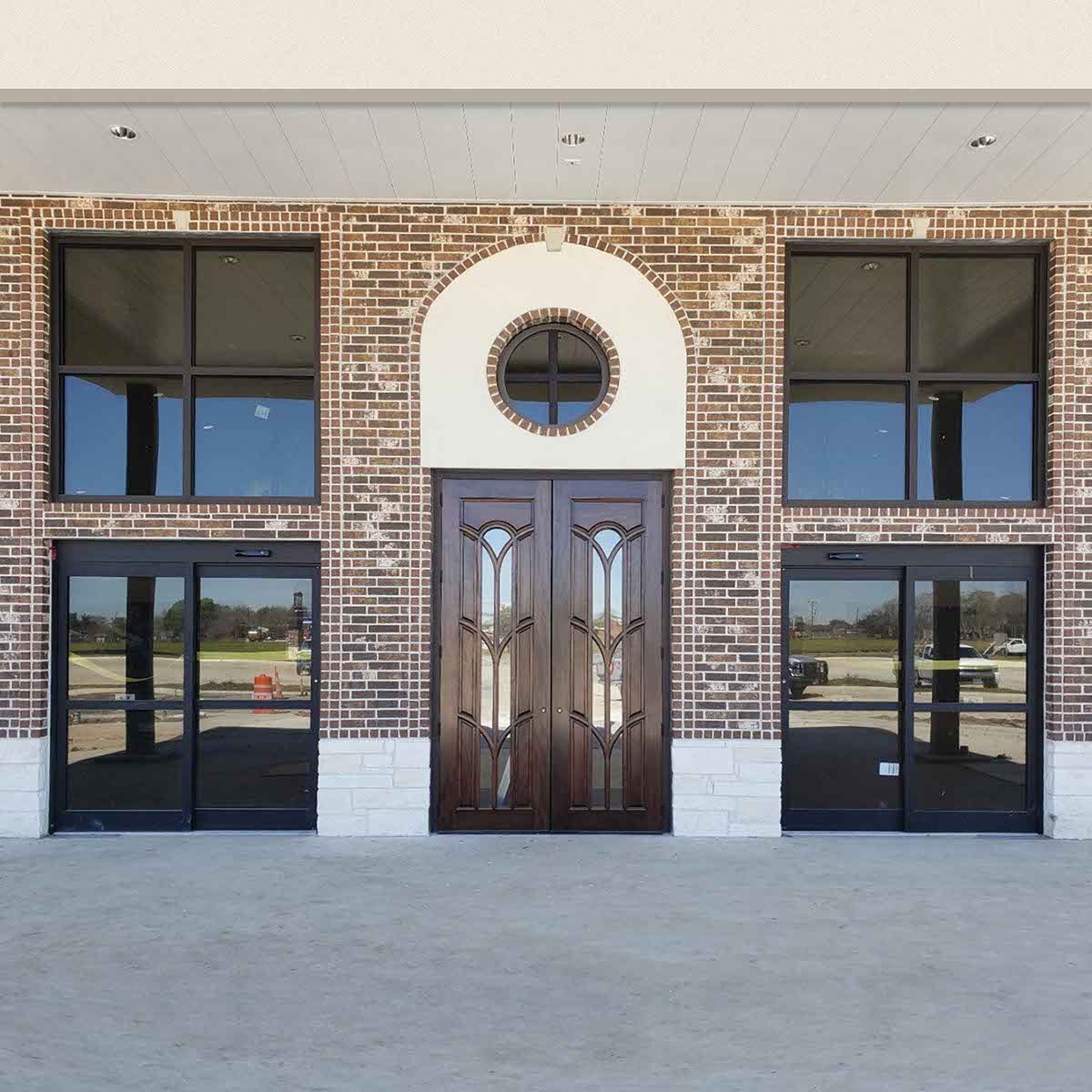

 The Record 5400 Large Missile Impact Series and the 5500 Wind Load Series have both been tested to design loads of +65 PSF / -70 PSF (Miami-Dade County, Florida NOA 21-0630.07 ), passing rigorous Florida State and Dade County criteria.  Both offer the same fluid, quiet and reliable operation for which the 5100 Series is known.

    • Two (2) Year Warranty

    • Exclusive S.M.A.R.T. Panel (Self-Monitoring Accurate Reporting Technology)

    • Narrow Stile Design

    • Steel reinforced doors and panel

    • Reduces unnecessary service calls and callbacks

    • Offers clean aesthetic site lines and provides maximum natural light

    • Designed to withstand category 5 force winds

    • Single motion release for emergency egress

    • No lock required on SO panels (standard on both impact and non-impact models)

    • Exit devices offer highly efficient emergency egress

    • Programmable fail safe or fail secure electric lock

    • Battery backup power supply good for one cycle

    • Complies with Miami-Dade County, Florida NOA 21-0630.07 exp date 3/17/25

    • The Record 5400 Series has been tested to design loads of +65 PSF/-70 PSF

    • Motor: low energy/high efficiency 1/8 HP

    • Input Power: 120v AC / 60Hz / 1 phase / 15amp

    • Max Overall Frame Width: 84" (single slide); 168" (bipart)

    • Max Overall Frame Height: 96”

    • Header Size: Height: 7 ¾” / Depth 4 ½”

    • Standard colors: clear or dark bronze anodized

    • Design Loads (PSF): +65 PSF / -70 PSF

    • Opening/Closing Speed: adjustable

    • Open braking force & torque: adjustable

    • Failure detection & auto reset: yes

    • Control board self-diagnosis: yes

    • Carrier wheels: 4 wheels per panel

    • Operating Conditions: -40 to +130 Fahrenheit

    • Switch: S.M.A.R.T. Panel

    • Recommended Max Door Weight: consult factory

    • Electro-Mechanical Locking Device: Fail safe / Fail secure

    • Impact Levels: LMI (Large Missile Impact)

    • Florida & DADE approvals- Miami-Dade County, Florida NOA 21-0630.07

    • Certifications: ANSI/BHMA A156.10, UL325, ICC A117.1, ICC/IBC (International Building Code), UL/CUL (Approved for use in Canada) NFPA 70 (National Electrical Code), NFPA 101 (Life Safety Code)
