Automatic mode with full opening width

Automatic mode with reduced opening width

Automatic mode in one-way (exit only) for traffic control

Adjustable reduced opening mode

Continuously open: door opens and remains in open position; either full open or reduced opening width

Off mode: door can be moved by hand

Safety sensors (self-monitoring holding beams) in the clear opening of the door prevent the door from shutting if persons or objects are in the detection zone.

Safety automatic reversing mechanism: if the door leaves are inhibited when closing, they are immediately re-opened (automatic reverse 2-step adjustable). If the door leaves are hindered when opening, they are immediately stopped.

The position of the obstacle is stored and will be slowly approached during the next door movement.

Even in the case of power failure, the emergency fail close or the emergency opening is assured by the optional emergency power options.

Sidelite protection - Additional sensors located above the opening path of the door will slow the opening if a person or object will inhibit the door opening normally.

Emergency battery: in the case of power failure, the optional battery back-up device will perform flawlessly (including all sensing devices) for hours. When the battery's capacity is low, the door slides to a pre-determined position (open, shut or locked). In the case of continued power failure, the shut and locked door can still be opened automatically by a key-operated impulse.

Electro-mechanical locking device concealed in the operator casing.

Systems for locking device surveillance and alarm.

Door leaf surveillance.

Interlock control: Continuous interlock control or only selectable by external contact (key-operated contact or building services control system).

Communication module for data exchange with a higher-level building services control system.

Integrated support for hydraulic closers in both SX (slide/swing) and SO (swing sidelite) panels.

Built into the top rail, door closers are available when specified, to ensure the door closes and remains operable after emergency breakout egress.

Recessed panic hardware is available for full-breakout and fixed panel applications which will comply with all existing exit codes.

Record USA recognizes the importance of the Green initiative. Disposing of items that could be recycled diminishes energy, water, and natural resources that could be saved by recycling. Creating an environment of cultural responsibility has been a focus of ours over the past several years and will remain as such for the foreseeable future.

Standby load of 25 watt and a maximum load of 100 watt

Traffic Sensitive "Smart" opening logic reduces air infiltration

Manufactured with recycled materials and without hard to dispose of materials.

Motor: low energy/high efficiency 1/8 HP, 100 watts

Input Power: 120v AC / 60Hz / 1 phase / 15amp

Standard colors: clear or dark bronze anodized

Opening/Closing Speed: adjustable

Open braking force & torque: adjustable

Failure detection & auto reset: yes

Control board self-diagnosis: yes

Carrier wheels: 4 wheels per panel

Operating Conditions: -40 to +130 Fahrenheit

Header Size: Height: 7 ¾” / Depth 4 ½”

Single Slide standard size: 84"' to 108" wide / 91" high

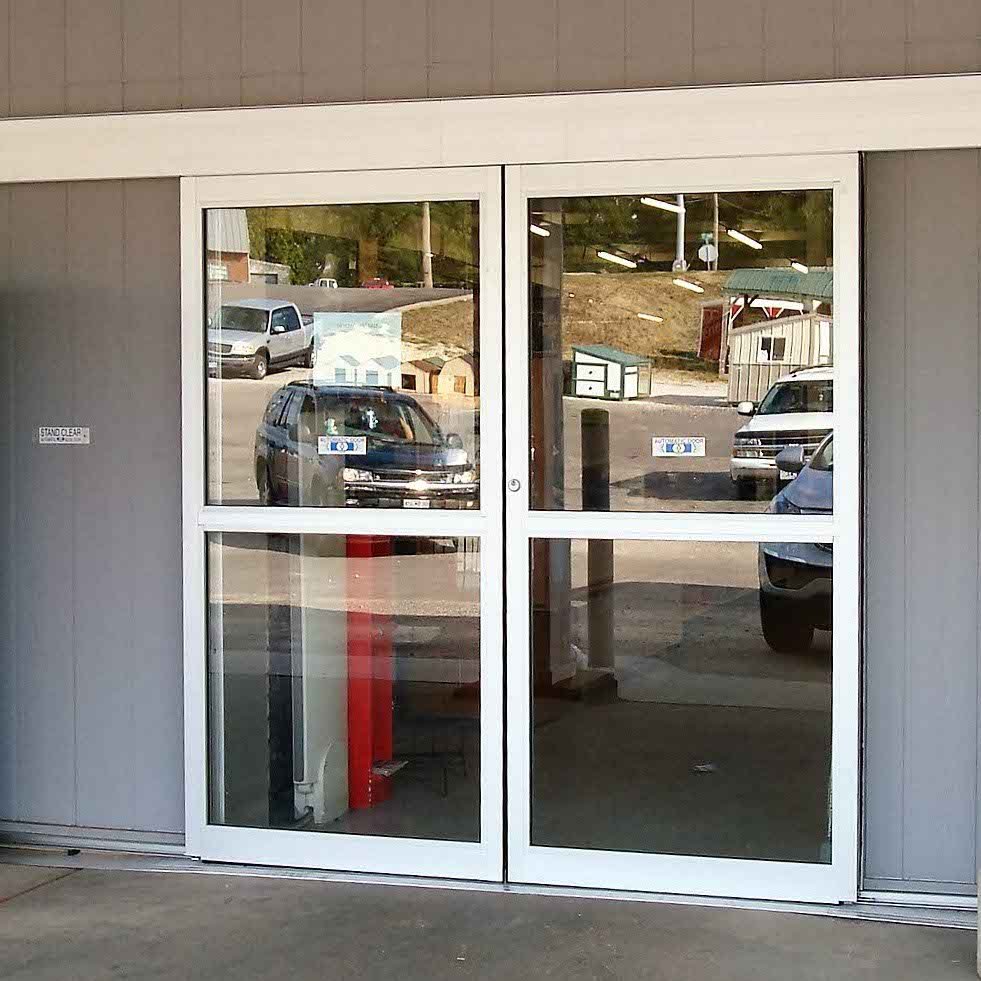

Bi-Part standard size: 108" to 192"' wide / 91" high

Switch: S.M.A.R.T. Panel

Adjustable end-stop: yes

Recommended Max Door Weight: consult factory

Certifications: ANSI/BHMA A156.10 and UL325
