5900

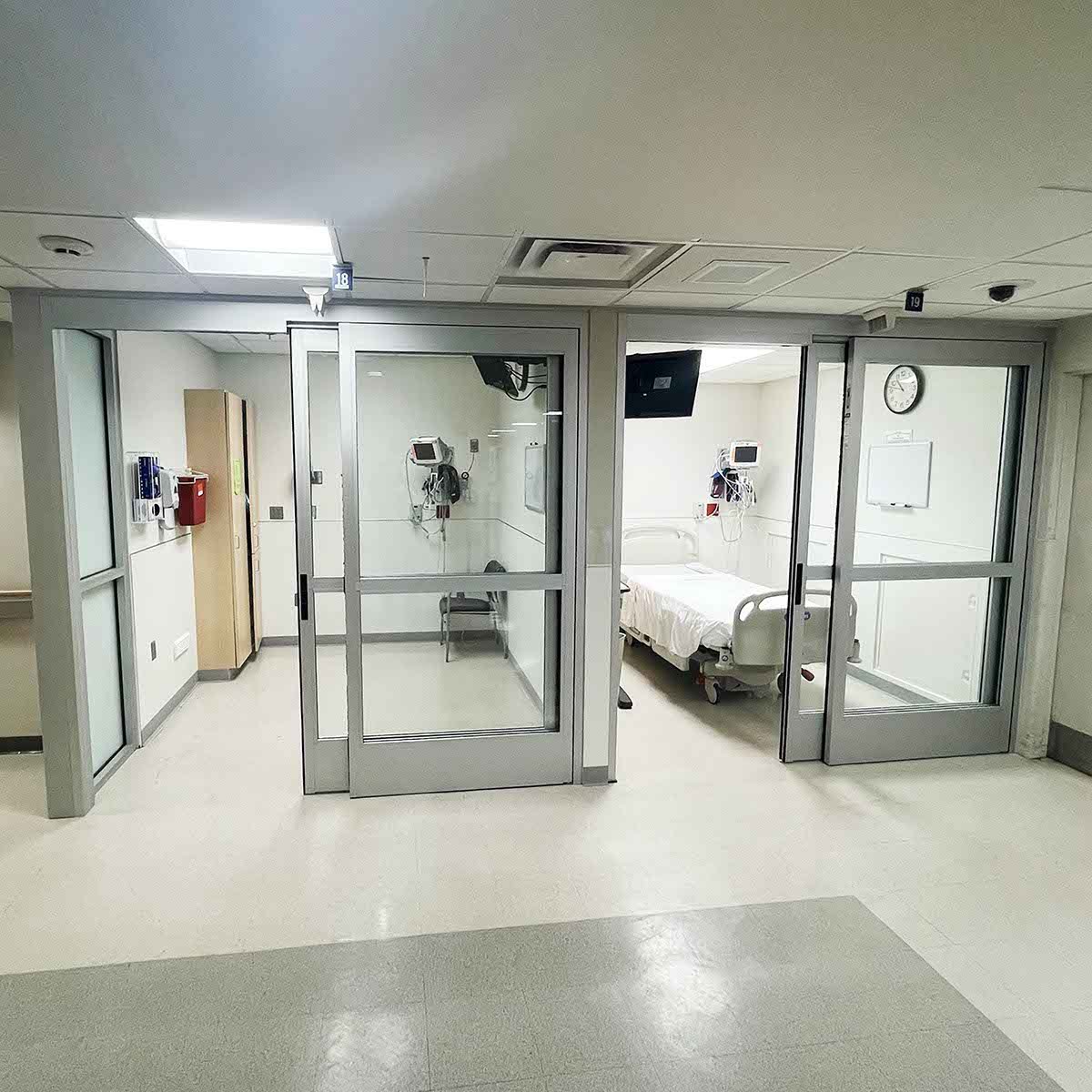

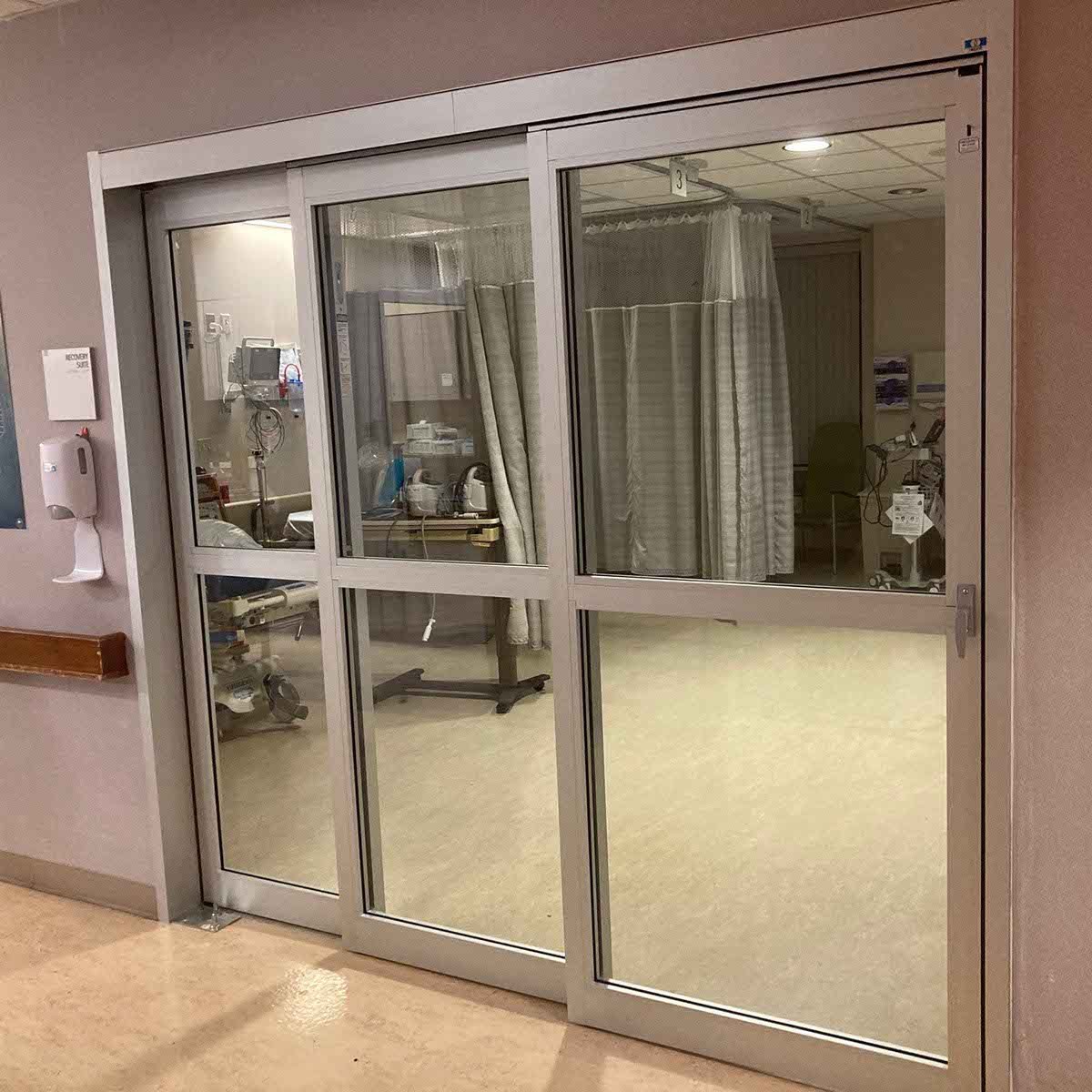

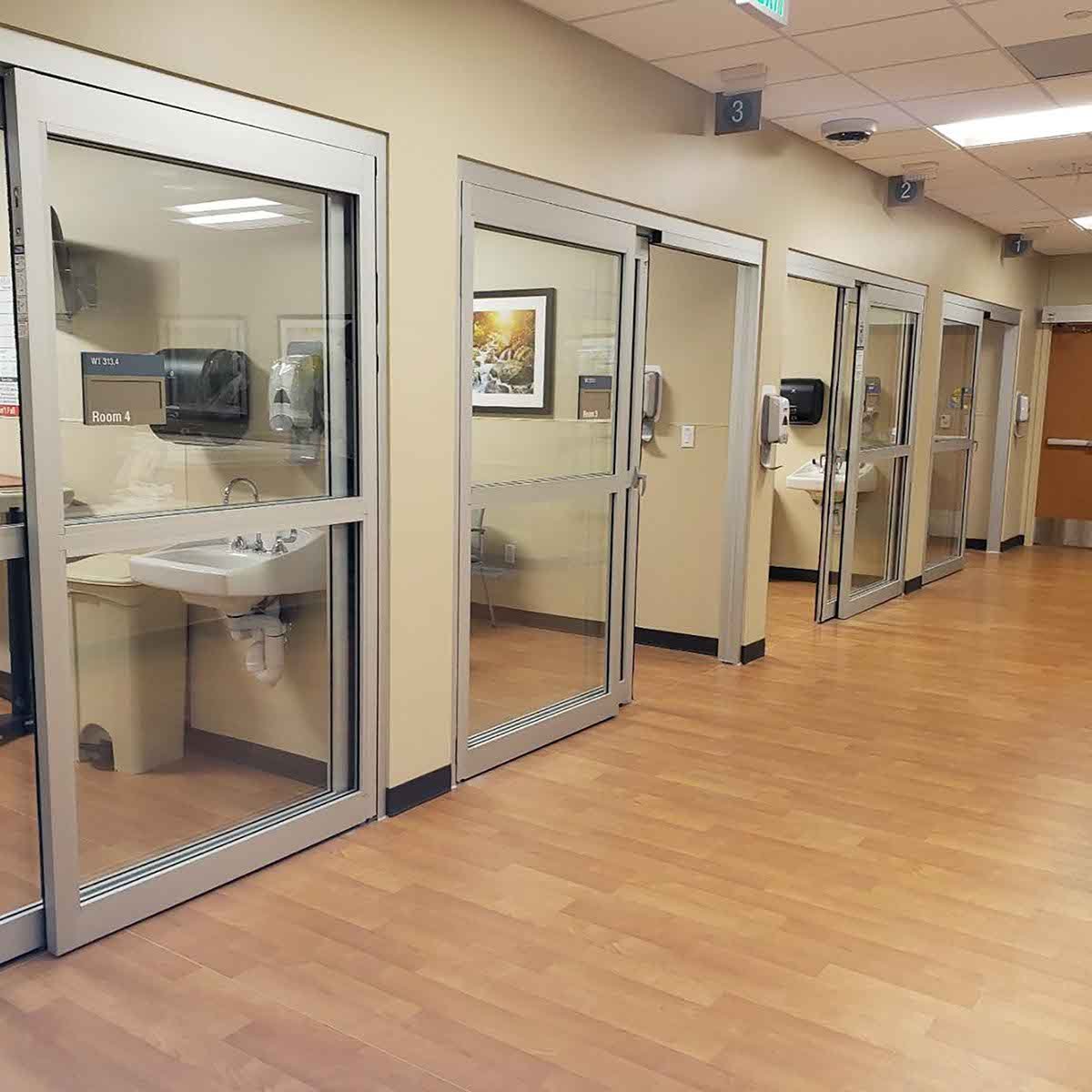

The 5900 Series ICU/CCU Manual Sliding Door Systems are the future in Hospital / Healthcare facilities providing simple, easy, attractive access in and out of patient rooms. These manual sliding doors are available in trackless two and four panel or three and six panel telescoping configurations and can be equipped with standard or trackless bottom guide operation.

  • The 5900 Series Trackless ICU/CCU Manual Sliding Door Systems are the future in Hospital / Healthcare facilities providing simple, easy, attractive access in and out of patient rooms. These manual sliding doors are available in trackless two and four panel or three and six panel telescoping configurations and can be equipped with standard or trackless bottom guide operation.

    Health care environments are challenging in that the need for a door way to rapidly provide break out capability in the event of emergency patient care is always evident.

    ICU doors are used to provide separation between patient rooms and other areas of the hospital.

    ICU doors are specified to eliminate critical life safety situations arising when possible delays may result due to hospital personnel hesitating momentarily when transporting patients due to slow moving doorways.

    Record’s manual sliding ICU door packages are available in multiple configurations that allow the architect total freedom in the design of a patient facility.One may select from two, three or four panel options, both with or without floor tracks.Other possibilities include either three or six panel telescopic designs, again both with and without floor tracks. To satisfy all of the requirements of the healthcare facility, the doors may be specified to breakaway either into the patient room, or out into the hallway–whichever option best allows for quick and unimpeded transportation of patients either in wheelchairs or on gurneys.

    *Note: With trackless units, breakaway capability may only be achieved for the sidelite assembly and the active sliding door leaf when the doors reach the fully open position.With standard pin guide track units sidelite and sliding door assemblies breakout from any position during the slide travel of the door.
